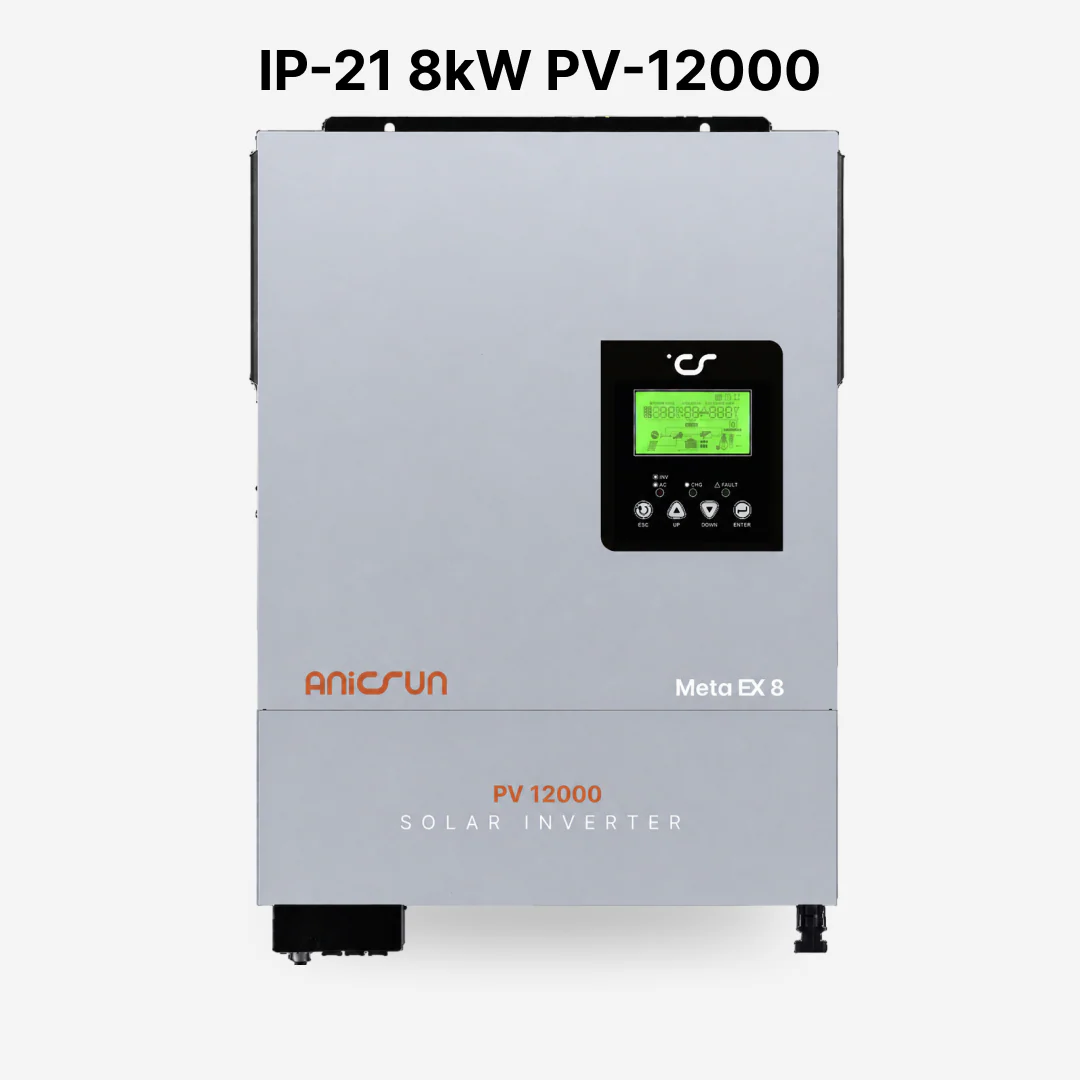

Anicsun Meta EX 8kW PV12000 Hybrid Solar Inverter

Description

ANICRUN META EX 8 Solar Inverter

Model: META EX 8

General Specifications

• Rated Power: 8000VA / 8000W
• Output Power: 8000W (PV + Battery), 8000W (Battery Only)
• Surge Power: 16000VA
• Efficiency (Peak): 93%
• Waveform: Pure Sine Wave
• Transfer Time: 10ms (PC), 20ms (Home Appliances)

AC Input

• Rated Voltage: 230VAC
• Voltage Range: 170–280VAC (PC), 90–280VAC (Home Appliances)
• Frequency Range: 50Hz / 60Hz (Auto Sensing)

AC Output

• Output Voltage: 230VAC ±5%

Battery Specifications

• Battery Voltage: 48VDC
• Floating Charge Voltage: 54VDC
• Overcharge Protection: 63VDC

Solar Charger Specifications

• Charger Type: MPPT
• Maximum PV Array Power: 12000W (6000W × 2)
• Maximum PV Open Circuit Voltage: 500VDC
• MPPT Operating Voltage Range: 90–450VDC
• Minimum PV Voltage (Batteryless): 100VDC
• Maximum Solar Charge Current: 150A
• Maximum AC Charge Current: 120A
• Maximum Charging Current: 150A
• Maximum PV Input Current: 22A × 2

Communication

• RS232
• RS485 (BMS)
• WiFi

Physical Specifications

• Dimensions (D × W × H): 141 × 322 × 497 mm
• Net Weight: 14.3 kg

Environmental Specifications

• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Operating Humidity: 5%–95% RH (Non-Condensing)
