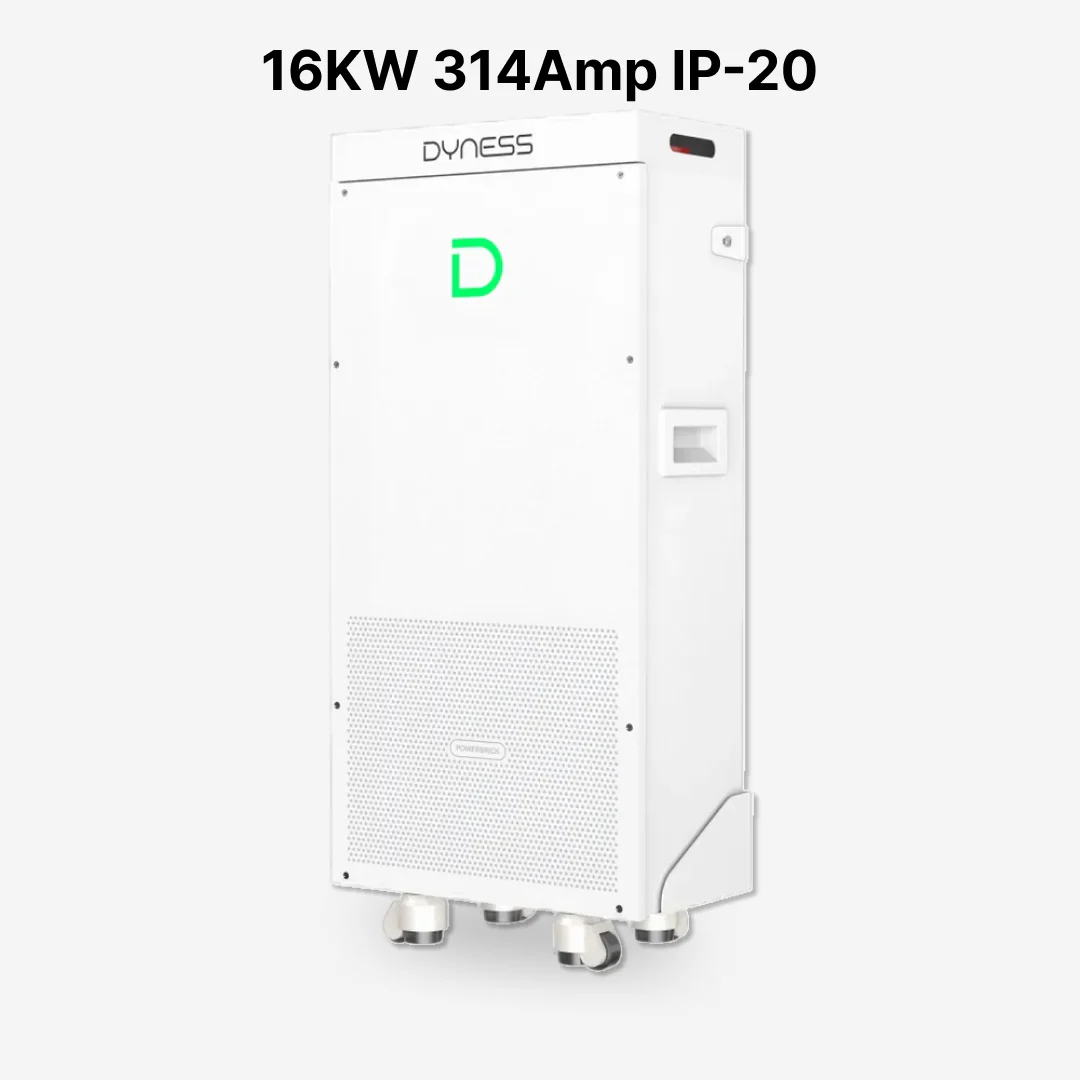

Dyness PowerBrick Max 16KW 51.2v 314A Lithium Battery

Description

PowerBrick Max:

• Battery Type: LiFePO4 (LFP)
• Battery Capacity: 16.07kWh
• Usable Capacity: 15.27kWh
• Voltage: 51.2V
• Capacity: 314Ah
• Working Voltage: 44.8V – 57.6V

Charging / Power

• Recommended Charge & Discharge: 140A
• Max Charge Current: 200A
• Max Discharge Current: 200A
• Peak Discharge Current: 300A for 2 minutes
• Recommended Power: 7.168kW
• Max Charge Power: 10.24kW
• Max Discharge Power: 10.24kW

Battery Performance

• DOD: 95%
• Cycle Life: 8000+ cycles
• Warranty: 10 Years

Temperature

• Charging Temperature: 0°C to 55°C
• Optional Self-Heating: -20°C to 55°C
• Discharge Temperature: -20°C to 55°C

Build

• Weight: 116kg
• Size: 435 × 233 × 857 mm
• Protection Rating: IP20

Connectivity

• Communication: CAN / RS485
• WiFi + APP Support

Safety

• Built-in aerosol fire extinguisher

Installation

• Floor Mount
• Wall Mount

Expansion

• Supports up to 50 batteries in parallel

Compatible Inverters

• Deye
• Solis
• GoodWe
• Growatt
• Luxpower
• Victron
• SMA
• APsystem

Certifications

• UN38.3
• IEC62619
