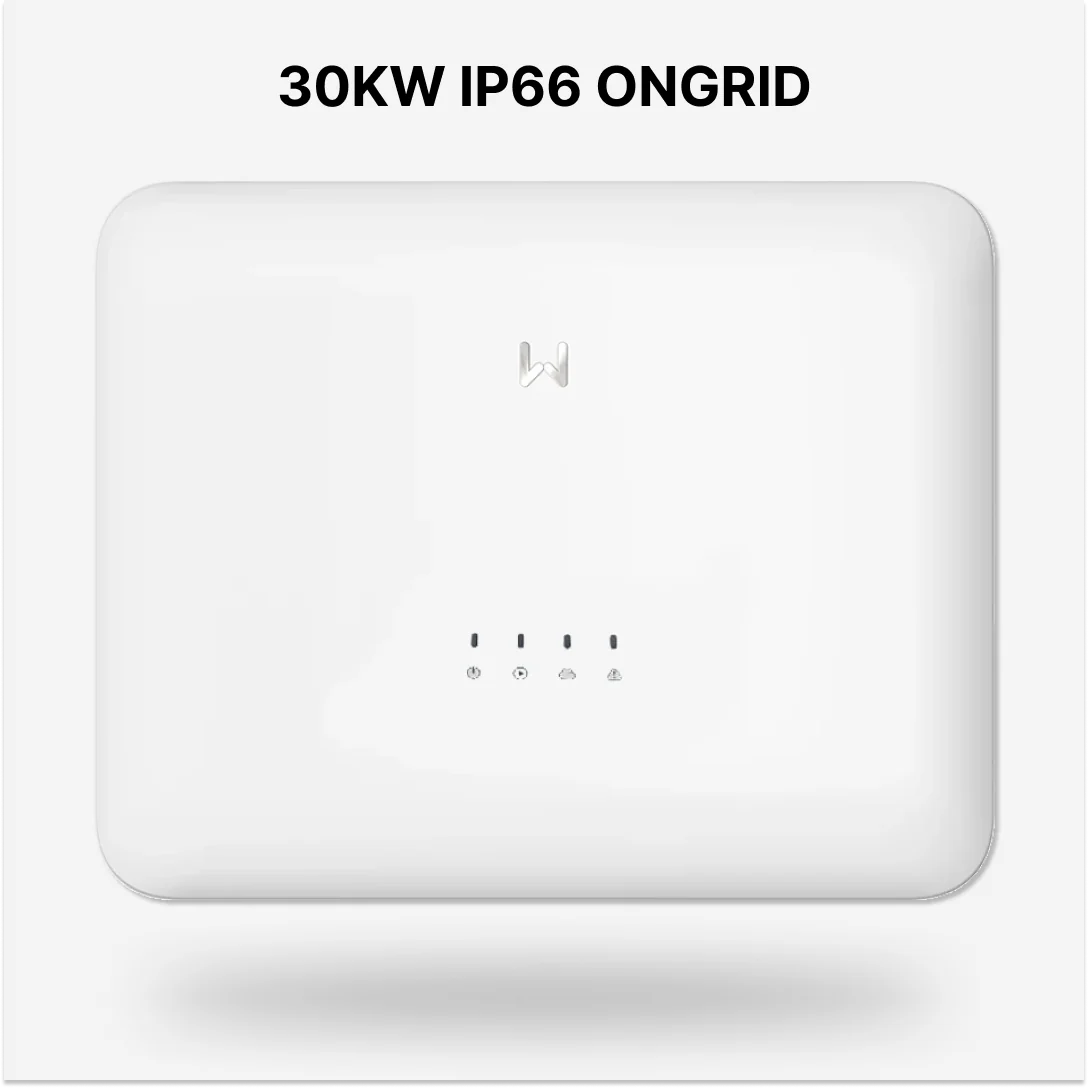

GoodWe 30KW Ongrid solar inverter

Description

The GoodWe GW30K-MT is a high-performance three-phase on-grid inverter designed for commercial rooftop solar systems. With an impressive efficiency of 98.8%, solid capacitors, and a fuse-free design, it enhances system reliability and reduces maintenance. Additionally, its optional Arc Fault Circuit Interrupter (AFCI) adds an extra layer of protection, ensuring the system’s safety and longevity.

Key Features:

• Maximum Efficiency of 98.8%: Ensures optimal energy generation and returns on investment.
• Solid Capacitors & Fuse-Free Design: Increases the inverter’s lifespan and reduces maintenance costs.
• Optional AFCI: Detects and interrupts arc faults, reducing fire hazards.
• Max DC Input Voltage of 1100V: Ideal for complex rooftop systems with diverse panel configurations.
• Wide MPPT Range (200-950V): Ensures efficient operation across various environments and panel layouts.
• Start-Up Voltage of 180V: Facilitates earlier power generation for increased energy production.
• Compact & Lightweight (40kg): Eases installation and transportation.

Advanced Safety Features:

• PV String Monitoring: Provides real-time tracking of solar string performance.
• Anti-Islanding Protection: Disconnects the inverter during grid outages for safety.
• Input Reverse Polarity Protection: Prevents damage from incorrect wiring.
• Residual Current Monitoring: Enhances safety by detecting current leakage.
• AC Overcurrent & Short Circuit Protection: Safeguards the system from overloads and faults.

Specifications:

• Input: Max Voltage: 1100V, MPPT Range: 200-950V, Start-Up Voltage: 180V
• Output: Nominal Power: 30kW, Max AC Active Power: 33.02kW, Output Voltage Range: 320-460V
• Efficiency: Max: 98.8%, European: 98.5%
• Operating Temperature: -30°C to +60°C
• Communication: RS485, WiFi, 4G or PLC (Optional)
• Weight: 40kg

The GoodWe GW30K-MT is an excellent choice for large-scale commercial solar systems, offering high efficiency, advanced safety features, and flexibility for complex installations.
